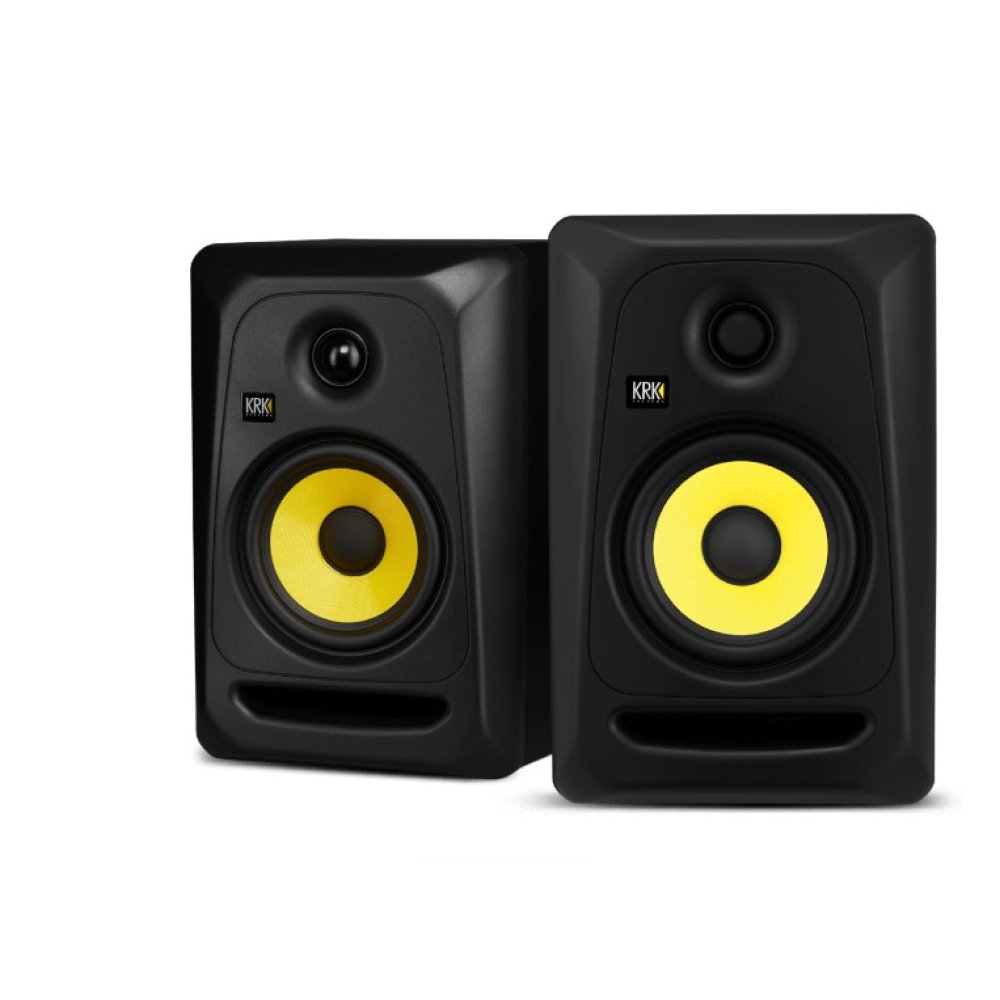

KRK ROKIT 5 G5 5″ 2-Way Active Studio Monitor

Ideal for nearfield monitoring, the KRK ROKIT 5 G5 is the fifth generation of the popular monitor series, now sporting a 1″ silk-dome tweeter and three voicing modes: Create, Mix, and Focus. With a front-firing port that offers low-end extension, punch, and flexible room positioning, the ROKIT 5 G5 can handle a wide range of applications.

The ROKIT 5 G5 has been reengineered from the ground up to offer updated features such as DSP-driven room tuning with 25 graphic EQ settings on an LCD combined with the included KRK app that helps minimize and correct problems in your acoustic environment. Bi-amped and sporting up to 55W of Class-D amplification, the ROKIT 5 G5 has enough juice to provide accurate transient response and dynamic reproduction of audio material without overworking the drivers. The ROKIT 5 G5 includes a magnetically affixed faceplate, an acoustic foam wedge isolation pad, and a power cord.

Three Voicing Modes

ROKIT G5 has three useful voicing modes:

Create mode: an inspirational voicing best used for writing, producing, and casual listening

Mix mode: an accurate voicing with a flat frequency response, best for mixing, mastering, and critical listening

Focus mode: a mid-focused voicing for critical analysis of the midrange band where vocals and most instruments have the most energy

Redesigned Driver System

Like the G4, the ROKIT 5 G5 sports a woven Kevlar aramid fiber cone woofer for superior damping and modal breakup control. Unlike the G4, the G5 now features a tweeter that benefits from a highly damped acoustic silk dome diaphragm to smoothly extend the frequency range up to 40 kHz. For maximum transient response and dynamics reproduction, bi-amplified Class-D power amplifiers drive the transducers evenly and more efficiently at reduced operating temperatures to ensure audio integrity during long work sessions.

Integrated Mounting Points

The ROKIT G5 monitors include integrated mounting points on the bottom of the enclosures. These mounting points are used with KRK mounting brackets, available as a separate purchase, or with other brands of mounting brackets that have the same hole mount pattern. Mounting your ROKIT G5 monitors is ideal for retrofitted Dolby ATMOS and immersive audio studios.

Faceplates and Protective Grille Faceplates

The ROKIT G5 monitors come with their protective grille faceplates installed. These faceplates not only look great but are there to protect the monitor drivers from any advertent finger pokes or accidental bumps.The ROKIT G5 monitors also come with nonprotective faceplates that can be used if there is no danger of your monitor drivers being damaged or if you prefer the look of the ROKIT G5 without the protective grilles. Both are magnetically attached for convenience.

Key Freatures

For Nearfield Applications

5″ Kevlar Aramid Fiber Woofer

1″ Silk-Dome Copper Cap Tweeter

Bi-Amped Class-D, 55W Total Output Power

3 Voicing Modes: Create, Mix, and Focus

LCD Display for EQ and Setup Parameters

Balanced TRS/XLR Combo Jack Inputs

Magnetically Affixed Faceplate

Mounting Points for KRK Mounting Bracket

Includes Foam Wedge Isolation Pad

Further Highlights

Studio monitors designed and engineered in the USA

Durable ferrite magnets

Scientifically designed high-quality / low-resonance speaker enclosure

Brickwall Limiter automatically engages at maximum amp level

Optimized high-frequency wave guide

Wide, deep, and dynamic listening sweet-spot with remarkable imaging

3D soundstage creates incredible realism and depth in your mix (width, depth, and height)

Specifications

Monitor Type & Configuration

Active 2-Way

Total Power Output

55 W RMS

Tweeter

1x 1″ / 25.4 mm Silk Dome

Woofer

1x 5″ / 12.7 cm Kevlar Cone

Frequency Range

43 Hz to 40 kHz

Audio I/O

1x Combo XLR-1/4″ TRS Balanced/Unbalanced Line Input (5.1 Kilohms)

Digital Audio I/O

No

Network I/O

No

Wireless

No

Number of Included Monitors

Single Monitor

Enclosure

Bass-Reflex/Ported

Total Power Output

55 W RMS

Drivers

Tweeter

1x 1″ / 25.4 mm Silk Dome

Woofer

1x 5″ / 12.7 cm Kevlar Cone

Amplifiers

HF: 20 W RMS Class-D

LF: 35 W RMS Class-D

Performance

Frequency Range

43 Hz to 40 kHz

Frequency Response

54 Hz to 30 kHz ± 3 dB

Maximum Sound Pressure Level (SPL)

104 dB

Signal-to-Noise Ratio

101 dB

Dispersion

155 x 126° (Horizontal x Vertical)

Protections and Limiting

Limiter

Signal Processing

Crossover Frequency

2.3 kHz

Phase Adjustment

No

App-Based Signal Processing

Graphic EQ

Connectivity

Audio I/O

1x Combo XLR-1/4″ TRS Balanced/Unbalanced Line Input (5.1 Kilohms)

Digital Audio I/O

No

Network I/O

No

USB

No

Wireless

No

Mobile App Compatible

Yes: Android & iOS

App Name: KRK App

Functionality: Adjust Settings

Power

AC Input Power

100 to 240 VAC, 50/60 Hz

Physical

Color

Black

Monitor Orientation

Vertical

Enclosure Material

MDF

Fan-Cooled

No

Mounting Points

4x M6 (Bottom Panel)

Dimensions (W x H x D)

7.5 x 11.3 x 9.5″ / 19.1 x 28.7 x 24.1 cm

Weight

10.9 lb / 4.9 kg (Active Speaker)
