400 Watt Ultra Portable Powered Column Loudspeaker with Mixer.

Elegant PA for musicians, DJs, Conference Audio systems, House of Worship & Home Audio.

400-watt RMS/121 dB peak SPL/40 Hz to 20 kHz

PA system that is fast and easy to assemble without stands or cables

Even sound distribution with dispersion angle (120° horizontal x 20° Vertical)

Powerful 8″ subwoofer

Clear Mid/High frequencies comprising 6 x Mid/High Frequency Drivers

Built in Bluetooth Audio Streaming

DSP with 4 Modes – Music, Live, Hi-fi & Speech

Protection circuits for reliable operation

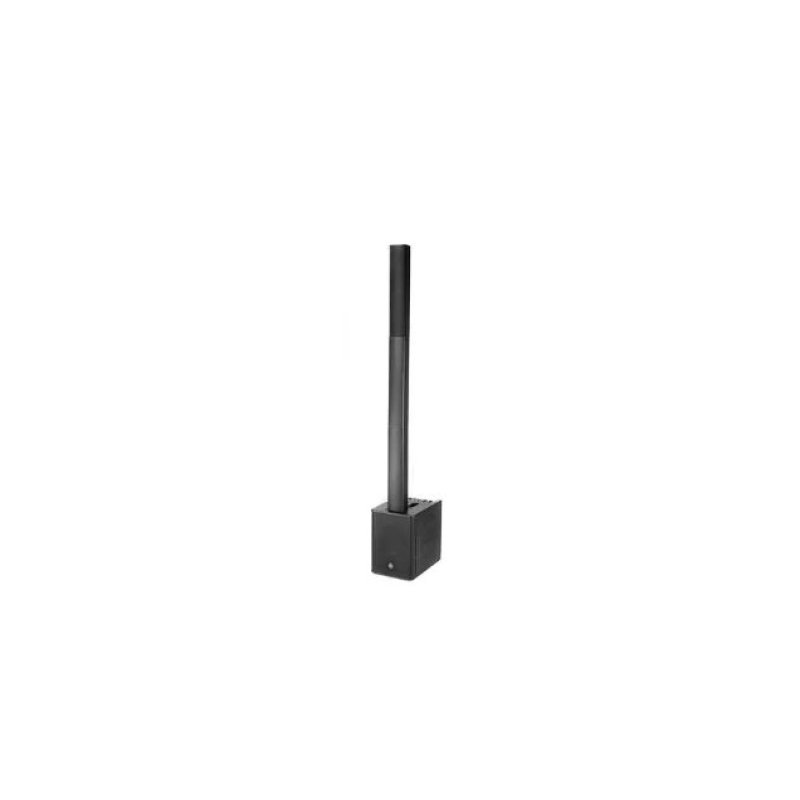

PowerWorks MERCURY -Ultra Portable active column PA system with Mixer & DSP presets

The PowerWorks MERCURY series offers an enormous 1,200 watts of total output (Peak Power) with a frequency response of 50 Hz to 20 kHz and a sound-level pressure of 121 dB (peak). With its outstanding sound properties and wide-ranging functions, this Active column PA system is perfect for musicians, DJs, Conference, Houses of Worship and solo entertainers.

The subwoofer is  fitted with 1 x 8″  woofer as well as 3 Amplifier modules which drives individually the Sub Woofer 300w and Mid/High 2 x 50w satellite speakers.

Input connections on Channel 1 & 2 Mic/Line & Reverb offer combo sockets (XLR/6.3 mm jack)

Input connections on Stereo Channel 3/4 Line with RCA inputs and 3,5mm jack input.

Master output and Master Reverb output levels can be individually adjusted.  The PowerWorks PA Column has 4 preset modes (Music, Live, Hi-Fi and Speech)

Mix XLR Output

Designed for easy transportation, the PowerWorks MERCURY P8 consists of a subwoofer and Mid/High array with a total weight of 13,75 kg.

Bluetooth Streaming

Easy streaming set up with music on your smart phone, computer or tablet. Easy set up and you can stream all your favourite music from any Bluetooth-equipped device.

SPECIFICATIONS

MODEL MERCURY-P8

Power-handling nominal (RMS) 400 W

Power-handling, program 800 W

Power-handling, peak 1200 W

Nominal impedance 4 ohms

Max SPL 121 dB

Amplification Class D  (Sub) + 1 x Class AB (Array Column)

Protection Circuits DSP based Multi-band Limiter, Short Circuit and Overheating protection

Vertical Array System 6 x 2,75″ Mid/High Speakers

Low/Mid Speaker 1x 8″

Sub Woofer 8″ Woofer with 2.0″ Voice Coil

Directivity 120° x 20° Array

Crossover frequency 200Hz, 24 dB/oct.

Inputs 2 x XLR/6,3mm Jack Combo, MP3 Input 3,5mm Jack/ Bluetooth/RCA Sockets

Output XLR Mix Out

DSP Preset Music, Live, Hi-Fi and Speech

Enclosure MDF

Grille Metal grille

Finish SubWoofer Painted Wood.  Satellite PVC black

Dimensions (WxHxD) SubWoofer 32,5 x 412 x 305 mm

Column Array (3)x 84 x 515 x 63 mm

Weight 13,75 kg / 30.31 lbs

MERCURY Series FAMILY P8 P10 P10.2 P15.2

System Type Active Portable Column Active Portable Column Active Portable Column 2.1 Active Portable System 2.1

Low-Frequency 8″ Woofer 10″ Woofer 10″  Woofer 15″  High Performance Woofer

Frequency Response 50Hz – 20KHz 50Hz – 20KHz 50Hz – 20KHz 35Hz – 20KHz

Max Peak SPL 121 dB 122 dB 125 dB 132 dB

Amplifier Class D+ Class AB Class D+Class AB 3 x Class D 3 x Class D

Power Output (Continous) 350 Watts 400 Watts 400 Watts 800 Watts

Sub-Woofer 8″ 2″ VC 10″ 2″ VC 10″ 2″ VC 15″ 4″VC

Vertical Column Array 6 x 2,75″ Wide range Speakers 6 x 2,75″ Wide range Speakers 2 Columns

6 x 2,75″ Wide range Speakers

2 x 8″ Woofer + Compression Driver

Inputs 4 Channel Mixer      2 x XLR/6.3mm Multi-con

1 x 3.5mm Stereo jack + 2 x RCA

4 Channel Mixer     2 x XLR/6.3mm Multi-con

1 x 3.5mm Stereo jack + 2 x RCA

2 x 6.3mm Jack

4 Channel Mixer      2 x XLR/6.3mm Multi-con

1 x 3.5mm Stereo jack + 2 x RCA

2 x 6.3mm Jack

4 Channel Mixer      2x XLR/6.3mm Multi-con

EQ No Channel 1 & 2 (3 band eq)

Channel 3 & 4 (2 band eq)

Channel 1 & 2 (3 band eq)

Channel 3 & 4 (2 band eq)

No

Sub Control No Yes Yes Yes

Reverb Yes Yes Yes Yes

Bluetooth Yes Yes Yes Yes

Mix Output Yes Yes Yes Yes – Mono/Stereo

AC Power Input 100VAC-240VAC Selectable 110V-120V / 220V0240V Selectable 110V-120V / 220V0240V 110V-120V / 220V0240V

Enclosure 15mm Plywood 15mm Plywood 18mm Plywood 18mm Plywood

Finish Multi-Layered Textured Paint Multi-Layered Textured Paint Multi-Layered Textured Paint Multi-Layered Textured Paint

Grill Metal grille Metal grille Metal grille Metal grille

Satellite Dimensions

(H x W x D)

 515mm X  84mm X  63mm 560mm X  107mm X  107mm 560mm X  107mm X  107mm 450mm X  270mm X  290mm

Sub-Woofer Dimensions

(H x W x D)

 412mm X  325mm X  305mm 520mm X  360mm X  470mm 520mm X  360mm X  470mm 610mm X  460mm X  565mm

Weight Sub     Satellite Sub     Satellite Sub     Satellite Sub  41.3Kg   Satellite 9.6Kg
