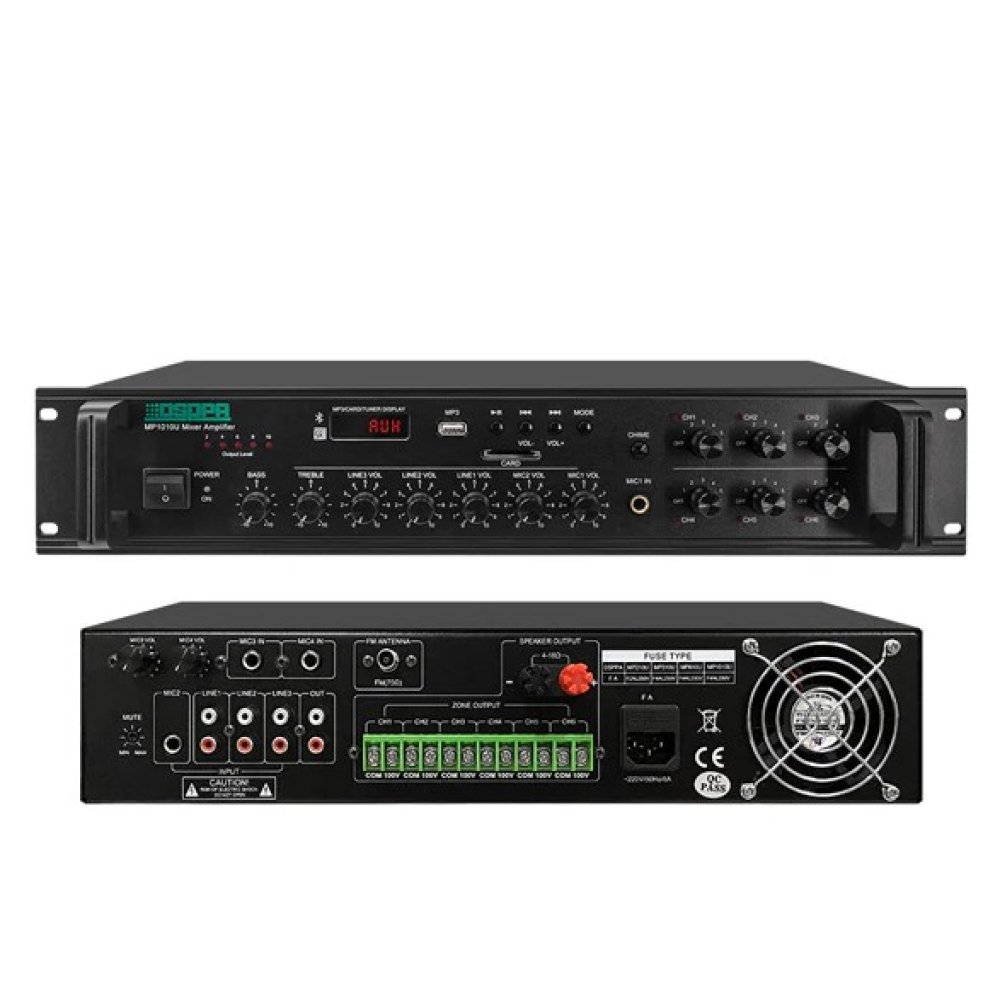

DSPPA MP 1010U BT MIXER AMPLIFIER

This mixing amplifier is rated at 350W. 100V and 4-16 Ω speaker output are provided. There are 4 unbalanced microphones inputs and 3 aux inputs. Bass and treble controls are provided.  This amplifier can be applied to different occasions, such as supermarket, classroom, etc. Extensive protection from short-circuit, overload and high temp is ensured. Automatic cooling system ensures the extreme quiet sound system.

Model

MP210U

MP310U

MP610U

MP1010U

Rated Output

60W

120W

250W

350W

Output regulation

≤3dB (from off-load to full load)

Input sensitivity

Microphone :≤3mV (unbalanced)

Line:≤300mV (unbalanced)

Frequency response

80Hz-16KHz (±3dB)

Distortion

≤1%（1KHz，normal operating status）

S/N Ratio

Line:≥74dB

Tone

Bass:  ±10dB（at 100Hz）

Treble:  ±10dB（at 10kHz）

Protection

DC voltage; overload; short-circuit.

Mute

Input signals from MIC 1 override other input signals

Power supply

AC 220-240V/50-60Hz

Power

Consumption

120W

250W

500W

650W

Outer Packing Size(mm)

(L×W×H)555×455×185

Unit Size (mm)

(L×W×H)484×355×88

Gross Weight

11.7kg

13.5kg

16kg

17kg

Net Weight

9.7kg

11.5kg

14kg

15kg
